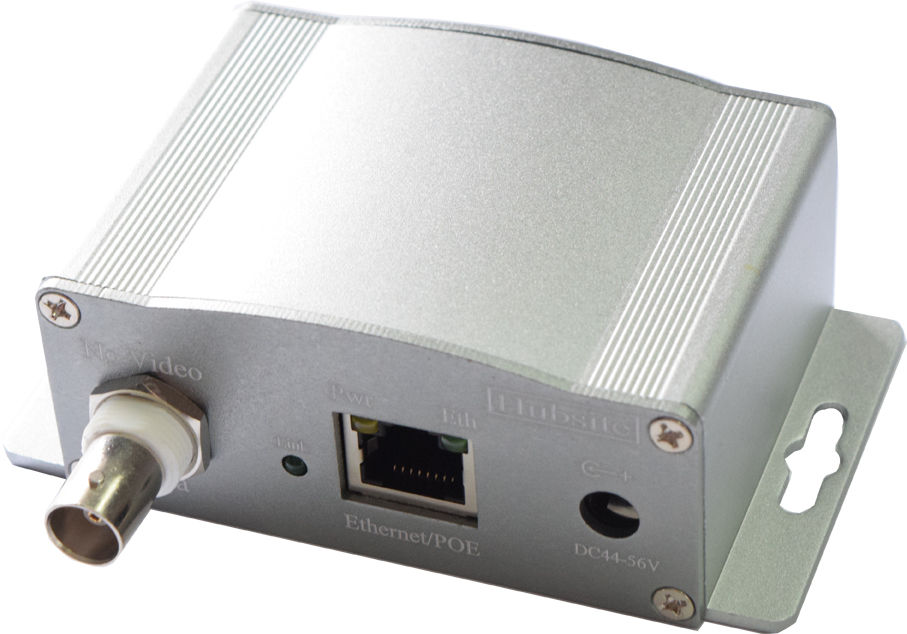

2wIP D Base Unit

Wantec 2wIP D product series Ethernet / PoE Extender system is a compact media converter that allows 10/100 Base-T Ethernet and IEEE802.3at/af, PoE+ power to be transmitted using virtually any kind of cable. It means that you can utilize a Coaxial cable or any two-wire cable (UTP, STP cable, Telephone line, bell wire, and power cable for instance) for the Ethernet / PoE Transmission and also use in legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras without having to lay any new cables or implement any other constructional measures.

The 2wIP D product series Ethernet / PoE Extender are required at both ends of the cable, and it automatically configures itself as either the transmitter or the receiver. The significant additional benefit of system is that, in addition to data, the power to operate PoE end devices can also be transferred via the two-wire cable. And now with PoE over 2-wire, you can deliver up to 50 watts of PoE power to the camera as well, eliminating the complexity of installing local power supplies. It is hard to predict or measure the length and quality of installed cable, so it is very important to deliver continuous, reliable power for the new IP camera from the cable you are upgrading. However, thanks to 2wIP D product series Ethernet / PoE Extender’s ultra low-power design, even the RG-59 coaxial cable, at its farthest range, can still support 15 watts to the IP camera.

Friendly status indicator. The smart LED indicators provide an instant and easy-to-understand confirmation of network and power status. Once connected, the LED power indicator instantly reaffirms that the actual power available to the camera is sufficient.

Add power easily. Use DC plug connections or use a PoE hub source. The PoE hub or DC power adaptor provide the last link in assuring continuous power without configuration or measurements; adding power is as straightforward as plugging it in. If PoE is not available (or you just want an extra power boost at either end of the cable), just connect the optional power supply.

• Trasnmit netwrk speeds up to 150 Mbps; distance up to 1,968 ft (600m)
• Re-use existing coax or 2-wire cable for IP cameras
• Adapter set to transfer via eithernet and PoE using a UTP cable
• Easy to install, no IP and MAC address configuration required
• Support Daisy chain and start system configuration
• Built-in Watchdog can auto-reconnect when system connection fails
• Support any 10/100 Base-T Ethernet device, including IP cameras
• Compliant with IEEE802.3 af/at standard and PoE+, also supports external power adapter for PoE
• Instantly check network signals along with link and power status with LED indicators
• 128-bit AES encrypted communication for transient protection
